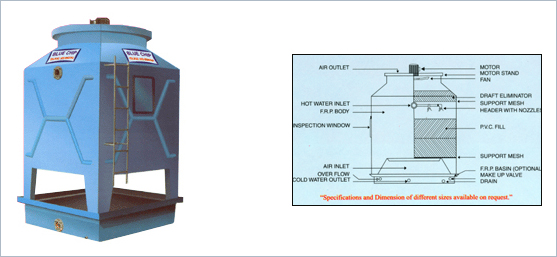

FRP Induced Draft Towers

Thermally efficient, long life, compact and aesthetically beautiful designs. Use of maintenance-free, fixed type of distribution system, PVC Honeycomb Fills to give film cooling, weather-proof IP-55 enclosure of motors & FRP basin for overflow and drain connector.

DESIGN :
BLUE CHIP Cooling Towers are in Counter flow design to achieve optimum performance by Uniform water distribution and optimal heat transfer.

CASING :
It is made of FRP segments and is structurally strong enough to withstand various forces and impact.

BASIN :
FRP type with fittings viz, make up, overflow & drain connection. It is an optional feature.

FAN :
The fan is of Axial Flow type, and is directly driven which saves from the perennial headche of V-belts / Gear drive. The fan blades are of Cast Aluminium alloy, and it is statically and dynamically balanced.

FAN DRIVE MOTOR :
It is available in T.E.F.C. Weatherproof, IP-55 enclosure, Class 'B' insulation, suitable for outdoor installation and is from reputed makes.

INSPECTION / ACCESS WINDOW :
It is provided for maintenance and periodical checking of the various segments of the Cooling Tower, without disturbing the normal working of the Cooling Tower.

GENERAL :
Blue-Chip Cooling Towers are Corrosion-free, Light-weight, Compact, Portable and very easy to install and maintain. They are truly a "Customer's Delight."

1. Induced Draft	- Assured Performance
2. FRP Construction	- Corrosion Free, Compact, Light Weight
3. Steady distribution System	- Maintenance Free
4. Inspection Window	- Easy Maintenance
