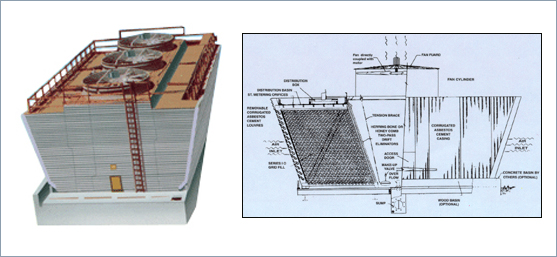

Unique Timber Cross flow Towers by use of Seagull Bars either in PVC or in Steel, 'C' type Drift Eliminators, Aerodynamic FRP Fans, Drives with or without Gear Boxes, all to give highest thermal efficiency. Use of Seagull Bars ensure film & splash cooling both. This gives more capacity by 20-25% over the conventional fill design.
STRUCTURE :
Selected quality Pine Wood as per IS 2372 treated with Chromated Cooper Arsenate ( ASCU Chemicals ) as per IS 401.
WATER DISTRIBUTION :
Open gravity type basin made of tongue and grooved treated timber Plank / marine plywood fitted with polypropylene spiral target nozzles to have uniform hot water distribution over the entire fill area.
FILL :
ASCU treated timber splash bars fill supported on GRP grids.
DRIFT ELIMINATOR : Made of treated timber planks supported on grooved treated plywood Eliminator frame in herringbone pattern.
CASINGS & LOUVERS :
Corrugated Asbestos Cement-Board / Corrugated FRP sheet on special applications.
HARD WARES :
Structural connections are made with Hot Dipped Galvanized bolts. Nails are of stainless steel (304 quality), screw shank type S.S.304 / 316-quality.
MECHANICAL EQUIPMENTS : FAN :
Propeller Type multi-bladed fan assembly. Blades are of cast Aluminium alloy and hub of cast iron. Fan directly coupled with motor.
FAN CYLINDER
Made of HDG Steel / FRP coated Cylinder fitted with hot dipped galvanized steel fan guard. MOTOR : New India or equivalent makes 415V/3PH /50Hz TEFC Weatherproof IP-54 enclosure. Class-B insulation Flange mounted vertical motor with extended shaft specially made for Cooling Tower Applications.
